INTRODUCTION :

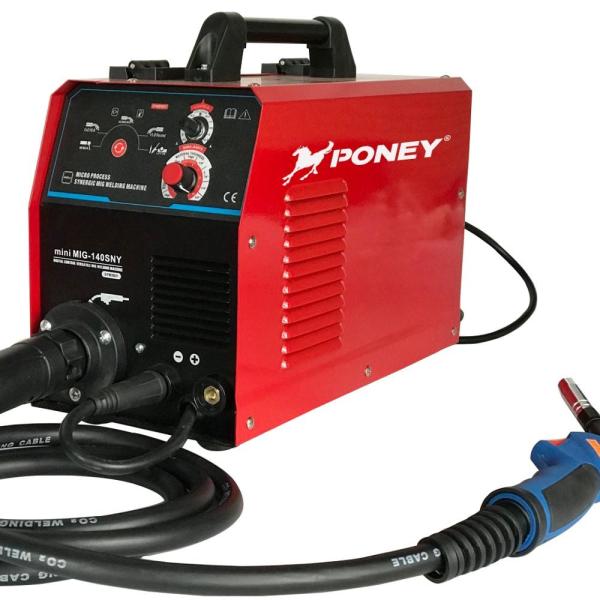

This highly developed digital controlled welder unit adopt advanced chip programmed inverter IGBT technology ,portable design .wire spool takes maximum 1 kg wire . the wire speed and working voltage are automatically matched at optimal status . The incredible welder always ensures excellent performance and high reliability ideal for home use , DIY , work shop , and all the way up for semi-industrial welding purpose .

Versatile mini MIG welding machine : MIG gas and no gas welding , MMA welding , TIG lift welding .

FEATURES :

· Inverter IGBT technology . Micro control synergic system

· Precise regulation for welding current and wire speed .

· Thermal protection .

· Delivers versatile welding process MIG/MAG+MMA +TIG lift

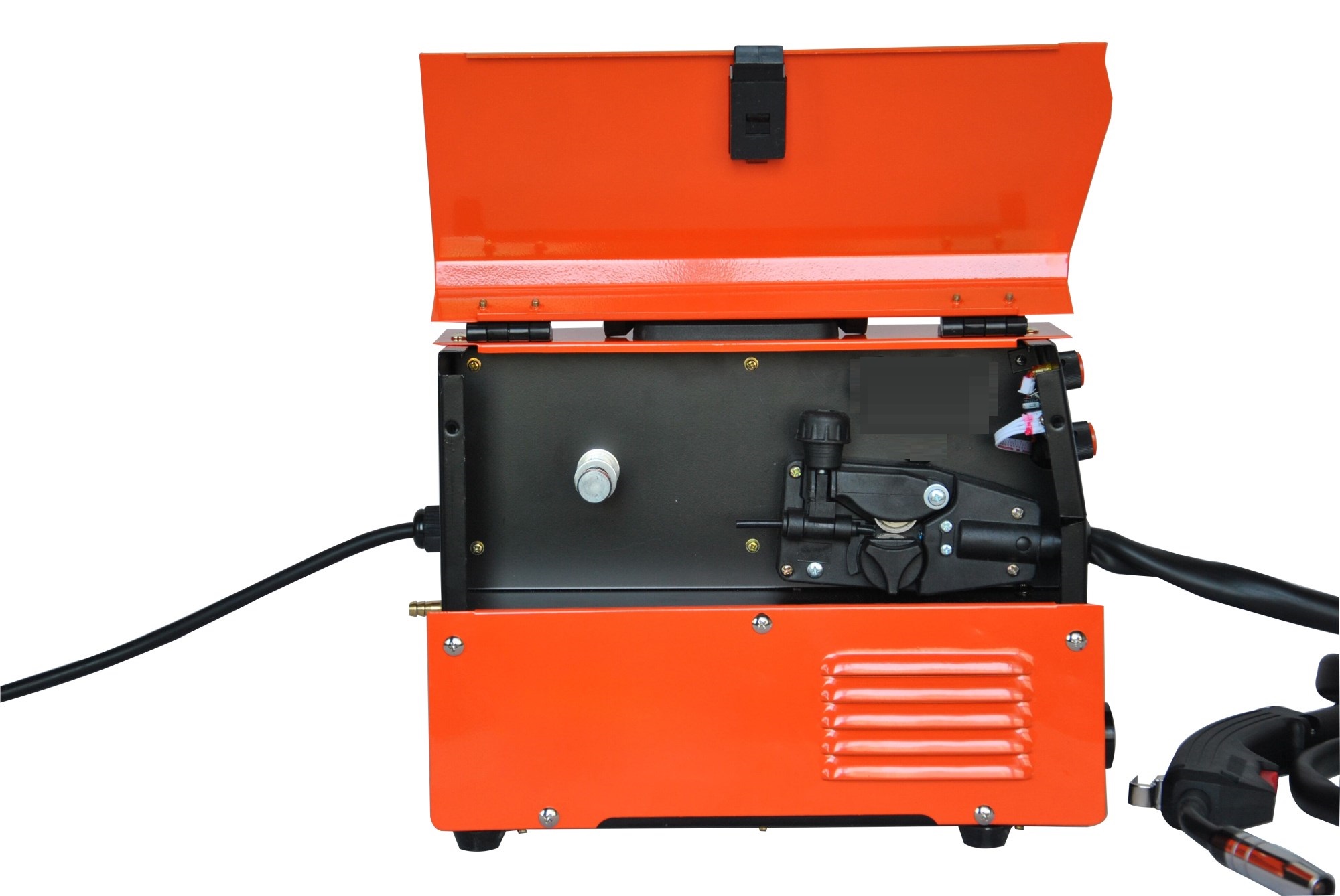

· Wire spool to mount maximum 1 kg wire.

ADVANTAGES :

· Super MINI , portable design , light weight

· Excellent welding performance .

· Easy change for gas /no gas welding .

· High efficiency .

· Little spatter .

· Energy saving .

· Environment friendly.

SPECIFICATIONS :

· Voltage 220V .

· Input capacity :3.5KVA

· Output current range : 20-140A

· Duty cycle : 60%

· Efficiency : 85 %

· Insulation degree : F

· Protection degree : IP21S

· Usable wire diameter :0.6-1.0mm

· Electrode diameter :1.6-3.2mm

· Weight : Net wt :13kg , Gross wt : 15.5kg

· Machine size : 42x20.5x30cm

· Packing size : 56X24X36 cm

The Zhejiang Poney Electric Co.,Ltd is an export oriented enterprise which specializes in R&D , manufacturing , and sale. We are providing a diverse range of products which include welding machine , plasma cutting machine and battery charger . We believe quality is the key in the international arena ,thus sound management system and strict quality control system have been established to ensure stable performances of the goods . due to enormous investment on digital and automatic equipment , we have tripled our production capability .We pursue excellence by valuing the idea “ be careful in each detail , providing the world with the finest products “.
